Form Extensions

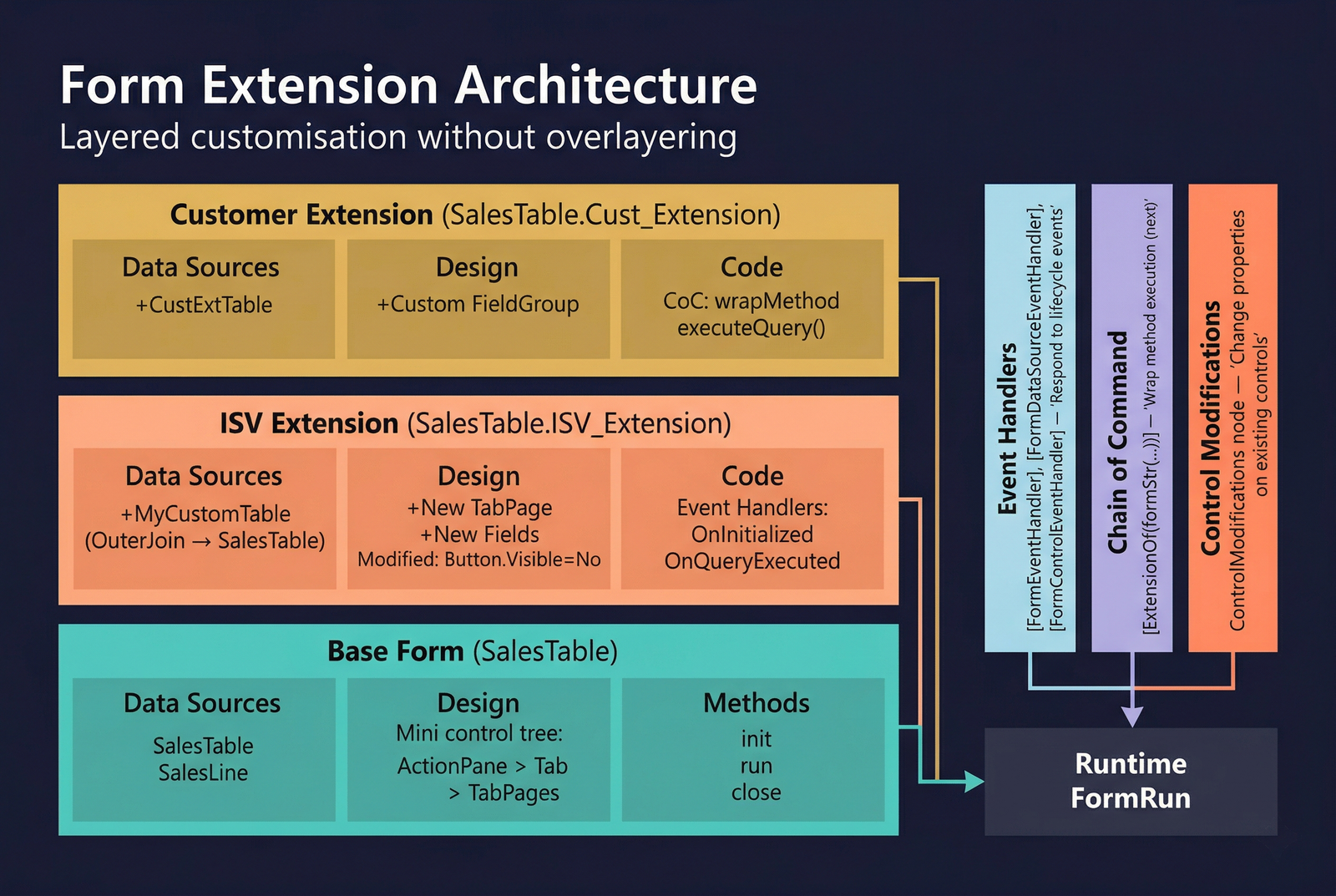

A Form Extension (AxFormExtension) is the primary mechanism for customising an existing form without modifying its original source code. The extension model is the cornerstone of overlay-free development in D365 F&O — it allows ISVs and customers to add data sources, controls, and event handlers to standard forms while preserving upgradeability.

Form extensions are created by right-clicking the target form in the AOT and selecting Create extension. This creates an AxFormExtension object named <OriginalFormName>.Extension in your model.

What Can Be Extended

Capability	Description
Add Data Sources	Add new data sources to the form, joined to existing data sources.
Add Controls	Add new controls anywhere in the design tree — fields, groups, tabs, buttons, action pane tabs.
Modify Control Properties	Change properties on existing controls (e.g., set Visible = No, change Label, move controls between containers).
Subscribe to Events	Attach event handlers at form, data source, field, and control levels. See Event Handlers.
Chain of Command	Wrap existing form, data source, and field methods. See Code Extensions.

Extension Object Structure

The extension object contains its own nodes:

Node	Type	Description
DataSources	AxFormDataSourceRoot	New data sources joined to existing ones on the base form.
Controls	AxFormExtensionControl	New controls placed into the existing design tree with position metadata.
ControlModifications	AxExtensionModification	Property overrides on existing controls (e.g., Visible, Enabled, Label).

Adding Data Sources

New data sources added in an extension follow the same property model as form data sources. The JoinSource property must reference an existing data source on the base form so the framework knows how to link the data.

warning

An extension data source can only join to data sources that already exist on the form (including those added by other extensions loaded before yours). Be mindful of model load order when multiple ISV extensions exist on the same form.

Adding Controls

Extension controls are added to the form's design tree by specifying an existing container as the parent. Each control's position within the container is set using PositionType and PreviousSibling.

Property	Type	Description
Name	String	The control name (prefix with your solution abbreviation).
Parent	String	The existing container control to add this control into.
PositionType	ExtensionItemPositionType	Where to place the control. Values: Begin (0), End (1), AfterItem (2).
PreviousSibling	String	When PositionType = AfterItem, the sibling control to place after.

Modifying Existing Controls

The ControlModifications node allows you to change properties on controls defined in the base form:

• Setting Visible = No to hide a standard control.
• Changing a control's Label or HelpText.
• Setting Enabled = No to disable a control.
• Moving a control to a different container.

note

Not all control properties can be modified through extensions. Layout-critical properties that would break form patterns may be restricted. Always test pattern compliance after modifying control properties.

Naming Conventions

Pattern	Example	Description
Extension object	SalesTable.SAMOModel	Base form name + dot + your model name.
New data sources	SAMOCustomTable_ds	Prefix + table name + _ds suffix.
New controls	SAMOCustTierField	Prefix + descriptive name.
New groups	SAMOCustomGroup	Prefix + descriptive name.

Best Practices

1. One extension per model per form. Do not create multiple extensions of the same form in a single model.
2. Prefer event handlers for additive logic. They are cleaner and have less risk of breaking with updates.
3. Use CoC for pre/post logic. When you need to wrap a method's execution, CoC is the correct approach.
4. Test pattern compliance. After adding controls or modifying the design, run the form pattern validator to ensure the form still passes.
5. Document your extensions. Use clear naming conventions and add developer documentation explaining why the extension exists.
6. Never copy and replace. If you need to replace an entire method, reconsider the approach.

---

Properties

7/7 properties

Property	Display Name	Type	Description
Form ExtensionAxFormExtension
Name	Name	String	The name of the extension (follows BaseForm.Package naming).
Tags	Tags	String	Tags for this element separated by semicolon.
Extension ControlAxFormExtensionControl
Name	Name	String	The name of the extension control.
Tags	Tags	String	Tags for this element separated by semicolon.
Parent	Parent	String	The existing container control to add this control into.
PreviousSibling	Previous Sibling	String	The sibling control after which this control is positioned (when PositionType is AfterItem).
PositionType	Position Type	ExtensionItemPositionType	Where to place the control relative to the parent. Values: Begin (0), End (1), AfterItem (2).
