Queries

A Query in the Application Object Tree (AOT) is a reusable, declarative definition of a data retrieval operation. It specifies which tables to read, how to join them, what ranges to apply, and in what order to return results — all without writing X++ code. At design time the query appears as a tree of data sources, ranges, and relations; at runtime it is compiled into SQL and executed against the database.

Queries serve three distinct purposes in D365 F&O:

1. Standalone AOT objects — a named query that can be referenced by views (via the Query property), forms, reports, and data entities.
2. Form data sources — every form data source is backed by a query that controls which records the form displays. Forms can reference a standalone AOT query or build one inline.
3. X++ runtime objects — the Query and QueryRun classes let developers build and execute queries dynamically in code.

This section covers the AOT query object and its child elements. Form data sources are covered in the Forms section.

---

Query Types

The QueryType property determines how the query combines its root data sources:

Query Type	SQL Behaviour	Use Case
Join (0)	Root data sources are treated as separate FROM clauses joined together. Embedded data sources under each root are joined with the specified JoinMode.	Standard multi-table queries.
Union (1)	Root data sources are combined with UNION or UNION ALL. Each root data source contributes rows to a single result set.	Combining rows from structurally similar tables into one list.

Join Queries

In a Join query (the default), the first root data source is the primary table. Additional tables are added as embedded data sources nested underneath the root, each with a JoinMode that controls how records from the child table relate to the parent:

Join Mode	SQL Equivalent	Behaviour
InnerJoin (0)	INNER JOIN	Returns only rows where a match exists in both tables.
OuterJoin (1)	LEFT OUTER JOIN	Returns all rows from the parent; unmatched child rows have null values.
ExistsJoin (2)	EXISTS (SELECT ...)	Returns parent rows where at least one child match exists. No child columns are returned.
NoExistsJoin (3)	NOT EXISTS (SELECT ...)	Returns parent rows where no child match exists.

Embedded data sources can be nested to any depth, enabling multi-table join chains.

Union Queries

In a Union query, each root data source contributes rows independently. The UnionType property on each data source controls whether duplicates are eliminated:

Union Type	SQL Behaviour
None (0)	Data source does not participate in the union (default for non-union queries).
Union (1)	UNION — combines rows and removes duplicates.
UnionAll (2)	UNION ALL — combines rows and keeps all duplicates.

All root data sources in a union query must expose the same set of fields (same names and compatible types) so the result sets can be merged.

---

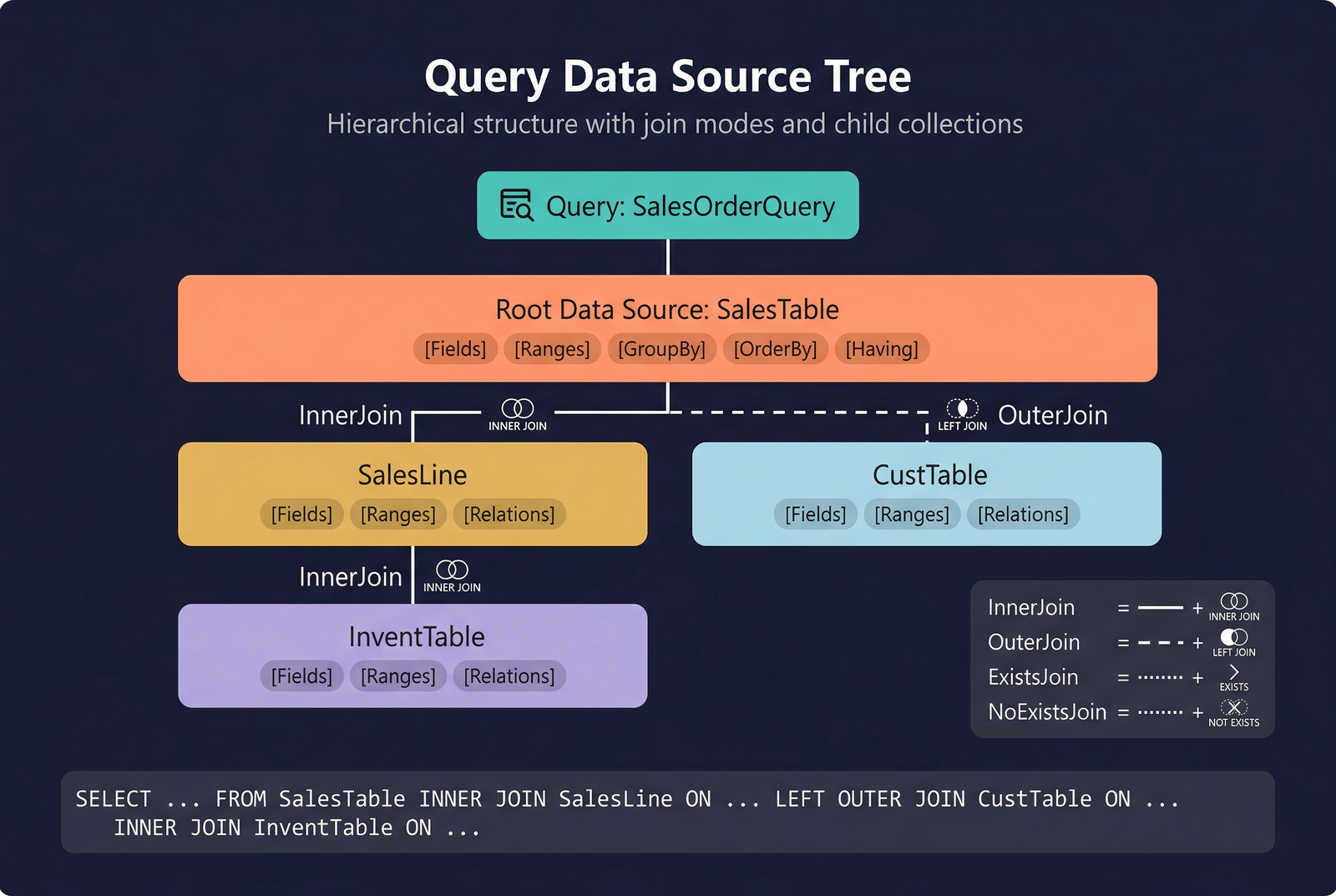

Data Source Hierarchy

Queries organise their data sources in a tree:

Query (AxQuerySimple)
└── Root Data Source (AxQuerySimpleRootDataSource)
    ├── Fields (AxQuerySimpleDataSourceField)
    ├── Ranges (AxQuerySimpleDataSourceRange)
    ├── Relations (AxQuerySimpleDataSourceRelation)     ← only on embedded
    ├── GroupBy (AxQuerySimpleGroupByField)              ← only on root
    ├── Having (AxQuerySimpleHavingPredicate)            ← only on root
    ├── OrderBy (AxQuerySimpleOrderByField)              ← only on root
    └── Embedded Data Source (AxQuerySimpleEmbeddedDataSource)
        ├── Fields
        ├── Ranges
        ├── Relations
        └── Embedded Data Source  ← further nesting

The root data source (AxQuerySimpleRootDataSource) inherits all properties from the shared AxQuerySimpleDataSource base and adds GroupBy, Having, and OrderBy collections. Embedded data sources (AxQuerySimpleEmbeddedDataSource) inherit the same shared base but add JoinMode, FetchMode, UseRelations, and a Relations collection for defining custom join conditions.

---

Fields

The Fields collection on a data source controls which columns appear in the query result. Each field entry (AxQuerySimpleDataSourceField) references a column from the data source's table.

When DynamicFields is set to Yes on the data source, all fields from the table are included automatically and the Fields collection is ignored. When set to No, only the explicitly listed fields are returned.

---

Ranges

Ranges define filter conditions on a data source — they become WHERE clauses in the generated SQL. Each range (AxQuerySimpleDataSourceRange) targets a specific field and specifies a filter value.

The Value property supports operators and expressions:

Expression	Example	SQL Equivalent
Exact value	10	= 10
Range	1..100	BETWEEN 1 AND 100
Not equal	!10	<> 10
Wildcard	Cust*	LIKE 'Cust%'
Or list	10,20,30	IN (10, 20, 30)

Range Status

The Status property controls whether end users can modify the range at runtime (in form query dialogs):

Status	Behaviour
Open (0)	The user can see and modify the range value.
Locked (1)	The user can see the range but cannot change it.
Hidden (2)	The range is invisible to the user and cannot be changed.

---

Relations (Embedded Data Sources)

When an embedded data source has UseRelations set to No, the join condition must be defined manually in the Relations collection. Each relation entry (AxQuerySimpleDataSourceRelation) links a field on the child data source to a field on the parent (or another named data source).

When UseRelations is Yes, the runtime uses the relations defined between the tables in the AOT Data Dictionary and the Relations collection is ignored.

---

Group By, Having, and Order By

These collections are available only on the root data source.

Group By

The GroupBy collection (AxQuerySimpleGroupByField) specifies the fields used to group rows, producing an SQL GROUP BY clause. When grouping is active, non-grouped fields in the query must use an aggregation function (Sum, Count, Min, Max, Avg).

Having

The Having collection (AxQuerySimpleHavingPredicate) filters grouped results — equivalent to a SQL HAVING clause. Having predicates are applied after aggregation, allowing you to filter on aggregate values (e.g., "only groups where SUM(Amount) > 1000").

Order By

The OrderBy collection (AxQuerySimpleOrderByField) defines the sort order of results. Each entry specifies a field and a direction:

Direction	Behaviour
Ascending (0)	Sort A→Z / smallest→largest.
Descending (1)	Sort Z→A / largest→smallest.

---

Fetch Mode

The FetchMode property on embedded data sources controls how the runtime retrieves records from joined tables:

Fetch Mode	Behaviour
OneToOne (0)	A single record from the child table is fetched alongside each parent record. This is the default and is appropriate for lookup joins.
OneToN (1)	Multiple child records are fetched per parent. The data source acts as a nested loop and must be iterated separately in X++ when used on forms.

In AOT queries consumed by views, FetchMode has no runtime effect because the view is flattened into SQL. It is primarily relevant when the query backs a form data source.

---

Using a Query in X++

The Query and QueryRun classes provide a programmatic interface to build and execute queries at runtime. You can start from an AOT query or build one entirely in code — adding data sources, ranges, joins, and sort orders dynamically.

When AllowCrossCompany is Yes on the AOT query (or set programmatically), the query retrieves data across all legal entities the user has access to.

See Code Examples for full implementation patterns.

---

Properties

67/67 properties

Property	Display Name	Type	Description
QueryAxQuerySimple
QueryType	Query Type	QueryType	Type of query. Values: Join (0), Union (1).
Title	Title	String	Title of the query.
Description	Description	String	Descriptive help text for the query.
Form	Form	String	Form associated with the query.
UserUpdate	User Update	NoYes	Whether the user may modify the query. Values: No (0), Yes (1).
Literals	Literals	SqlLiteralMode_ITxt	How literals are represented in SQL statements. Values: Default (0), ForceLiterals (1), ForcePlaceholders (2).
Interactive	Interactive	NoYes	Whether the query may open dialogs. Values: No (0), Yes (1).
AllowCheck	Allow Check	NoYes	Whether security checking occurs before or after the form opens. Values: No (0), Yes (1).
Searchable	Searchable	NoYes	Whether query results are searchable. Values: No (0), Yes (1).
AllowCrossCompany	Allow Cross Company	NoYes	Whether the query aggregates data across all companies. Values: No (0), Yes (1).
Importable	Importable	NoYes	Whether the query is importable. Values: No (0), Yes (1).
Data Source — sharedAxQuerySimpleDataSource
Name	Name	String	The name of the data source.
Tags	Tags	String	Tags for this element separated by semicolon.
Table	Table	String	The table, view, or data entity that supplies data for this data source.
Label	Label	String	Descriptive label for the data source.
Company	Company	String	Specific company context for this data source.
FirstOnly	First Only	NoYes	Whether only the first record should be selected. Values: No (0), Yes (1).
FirstFast	First Fast	NoYes	Whether to retrieve the first record faster than subsequent records. Values: No (0), Yes (1).
AllowAdd	Allow Add	NoYes	Whether the user may add fields for search. Values: No (0), Yes (1).
Update	Update	NoYes	Whether the cursor can update records. Values: No (0), Yes (1).
Enabled	Enabled	NoYes	Whether the data source is enabled. Values: No (0), Yes (1).
SelectWithRepeatableRead	Select With Repeatable Read	NoYes	Whether the data source uses a repeatable read hint. Values: No (0), Yes (1).
ConcurrencyModel	Concurrency Model	ConcurrencyModel	Concurrency model for the data source. Values: Auto (0), Optimistic (1), Pessimistic (2).
UnionType	Union Type	UnionType	Type of union for this data source. Values: None (0), Union (1), UnionAll (2).
DynamicFields	Dynamic Fields	QueryFieldListDynamic	Whether fields are dynamically selected. Values: No (0), Yes (1), Unselected (99).
PolicyContext	Policy Context	String	Policy context for the data source.
IsReadOnly	Is Read Only	NoYes	Whether the data source is read-only. Values: No (0), Yes (1).
ApplyDateFilter	Apply Date Filter	NoYes	Whether the data source is filtered for date effectivity. Values: No (0), Yes (1).
ValidTimeStateUpdate	Valid Time State Update	ValidTimeStateUpdate	Type of update for date-effective records. Values: CreateNewTimePeriod (1), Correction (2), EffectiveBased (3).
ChangeTrackingEnabled	Change Tracking Enabled	NoYes	Whether the data source participates in change tracking. Values: No (0), Yes (1).
Root Data SourceAxQuerySimpleRootDataSource
GroupBy	Group By	Collection	Fields to group by. Contains AxQuerySimpleGroupByField entries.
Having	Having	Collection	Having predicates applied after aggregation. Contains AxQuerySimpleHavingPredicate entries.
OrderBy	Order By	Collection	Sort order fields. Contains AxQuerySimpleOrderByField entries.
Embedded Data SourceAxQuerySimpleEmbeddedDataSource
JoinMode	Join Mode	JoinMode_ITxt	How the data source joins to its parent. Values: InnerJoin (0), OuterJoin (1), ExistsJoin (2), NoExistsJoin (3).
FetchMode	Fetch Mode	FetchMode_ITxt	How linked records are fetched. Values: OneToOne (0), OneToN (1).
UseRelations	Use Relations	NoYes	Whether to use AOT-defined relations for the join condition. Values: No (0), Yes (1).
Field / Range / Relation / GroupBy / OrderBy
Name	Name	String	The name of the field entry.
Tags	Tags	String	Tags for this element separated by semicolon.
Field	Field	String	The field from the data source table to include in the query result.
DerivedTable	Derived Table	String	Table used when referencing a field from a derived (table-inheritance) table.
Name	Name	String	The name of the range.
Tags	Tags	String	Tags for this element separated by semicolon.
Field	Field	String	The field to filter on.
Value	Value	String	The filter value or expression.
Label	Label	String	Descriptive label for the range.
Status	Status	RangeStatus	Runtime visibility and editability of the range. Values: Open (0), Locked (1), Hidden (2).
Enabled	Enabled	NoYes	Whether the range is active. Values: No (0), Yes (1).
DerivedTable	Derived Table	String	Table used when filtering a field from a derived table.
Name	Name	String	The name of the relation.
Tags	Tags	String	Tags for this element separated by semicolon.
JoinDataSource	Join Data Source	String	The data source to join to (by name).
Field	Field	String	Field on the current data source.
RelatedField	Related Field	String	Field on the joined data source.
JoinRelationName	Join Relation Name	String	Name of the AOT relation to use for the join.
JoinDerivedTable	Join Derived Table	String	Derived table on the join target side.
DerivedTable	Derived Table	String	Derived table on the current data source side.
Name	Name	String	The name of the group-by entry.
Tags	Tags	String	Tags for this element separated by semicolon.
Field	Field	String	The field to group by.
DataSource	Data Source	String	The data source containing the field (when grouping by a field on a joined data source).
DerivedTable	Derived Table	String	Derived table reference for table-inheritance scenarios.
Name	Name	String	The name of the order-by entry.
Tags	Tags	String	Tags for this element separated by semicolon.
Field	Field	String	The field to sort by.
Direction	Direction	OrderByDirection	Sort direction. Values: Ascending (0), Descending (1).
DataSource	Data Source	String	The data source containing the field.
DerivedTable	Derived Table	String	Derived table reference for table-inheritance scenarios.
